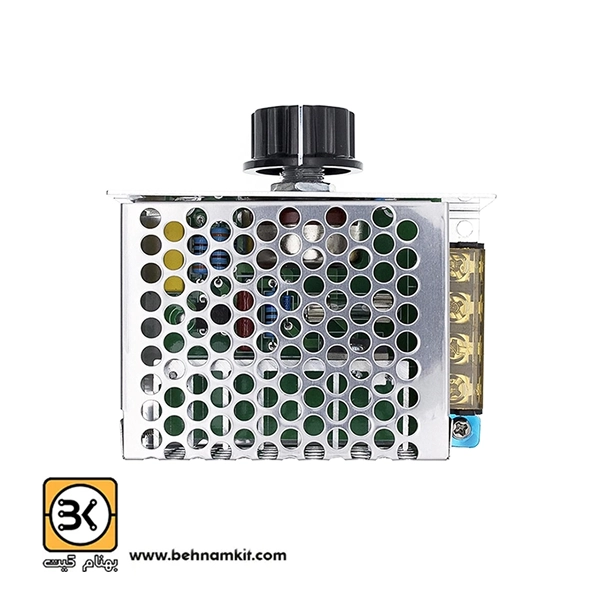

دیمر 4 كيلو وات SCR4000W

Dimmer is an electronic circuit that is used to control the voltage of electrical devices. This device allows you to adjust the light intensity of lamps or the speed of electric motors. Dimmers are placed in series in the circuit and control the brightness or speed by changing the input voltage.

Specifications

Dimmer AC to AC step down 4 kW
Input voltage: 220 V AC
Maximum output power: 4000 watts
Triac model: BTA41600b
Voltage adjustment: 10 to 220 volts AC
Potentiometer value: 500 kilo ohms
Size: 77*55 (mm)
Height: 30 mm
Weight: 68 grams
Maximum output current: 25 amps (up to 41 amps if original triac is used)
With terminal for high current
90% efficiency (according to the manufacturer)
Heat sink dimensions: 20*24*55 mm

Application

Lighting control
AC motor speed control
Small electric oven with the mentioned power
Suitable for water heaters
Use in incandescent lamps
Application in small engines
Application in electrical appliances

Note: This dimmer has undergone many technical improvements. The design of two capacitors (a safety capacitor + a metal film capacitor) can effectively absorb voltage fluctuations, protect the triac more effectively, and the user can use it effectively and safe to use
